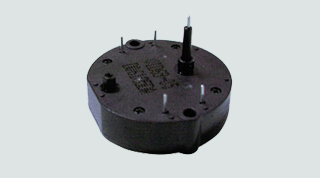

VID69 Series Car Clock Stepper Motor

DESCRIPTION
The VID69 Car Clock Stepper Motor is a precision stepping motor design with a reduced gear ratio 60/1 for minute shaft and 12/1 for hour shaft. The product is mainly used in automotive instrumentation or other equipments to support a clock function. The 6 step gear design is the foundation of the product's high efficiency, high position accuracy and extremely robust gear system. A special gear shape and the unique material choice for each component decrease mechanical friction and noise, with a net result of an enhanced product liability.

MAIN FEATURES
Wide working voltage: 5~10V.
Wide working temperature: -40~105℃.
Low current consumption.
Small dimension: Ф30mm X 8.3mm.
Large static torque.
Qualified for automotive applications.
